Home >> Products  >> Brushless Motor  >> DC Brushless Motor
Brushless Motor

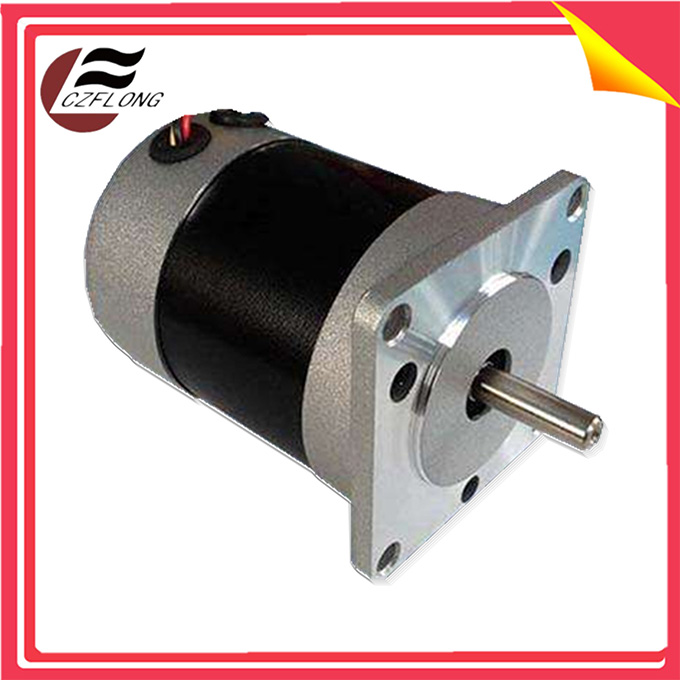

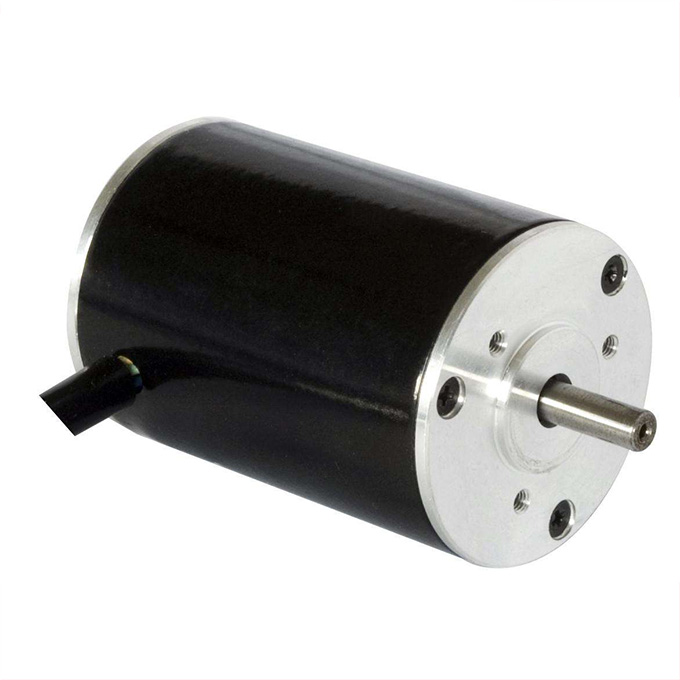

DC Brushless Motor
Brushless DC electric motor (BLDC motors, BL motors) also known as electronically commutated motors (ECMs, EC motors) are synchronous motors powered by DC electricity via an inverter/switching power supply which produces an AC/bi-directional electric current to drive each phase of the motor via a closed loop controller.
    • DC Brushless Motor
    • DC Brushless Motor


Model

Phase No

Voltage(V)

Rated Speed (RPM)

Peak Torque(Nm)

output power(W)

Phase Resistance(Ω)

Phase Inductance(mH)

Body length(mm)

Weight(Kg)

57BL01

3

24

2500

0.18

15

3.6

2.6

41.5

0.43

57BL02

3

24

3000

0.38

34

1.2

2.2

46.5

0.5

57BL03

3

24

3000

0.8

69

0.65

1.1

66.5

0.75

57BL04

3

24

3000

0.58

52

0.9

1.3

56.5

0.67

57BL05

3

24

3000

1.2

103

0.5

0.6

86.5

1

57BLF01

3

24

3000

0.6

63

0,6

0.75

59

0.65

 57BLF02

3

24

3000

1.2

125

0.3

0.42

80

1
