Hybrid stepper motor

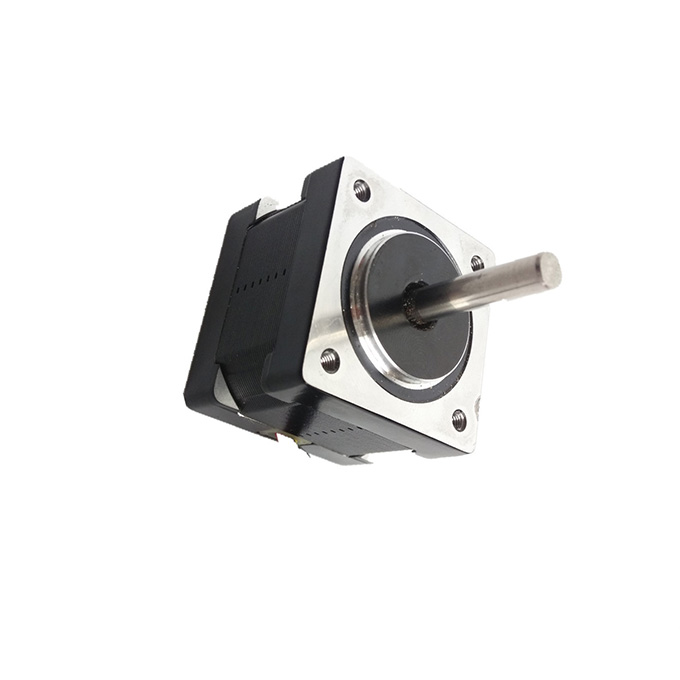

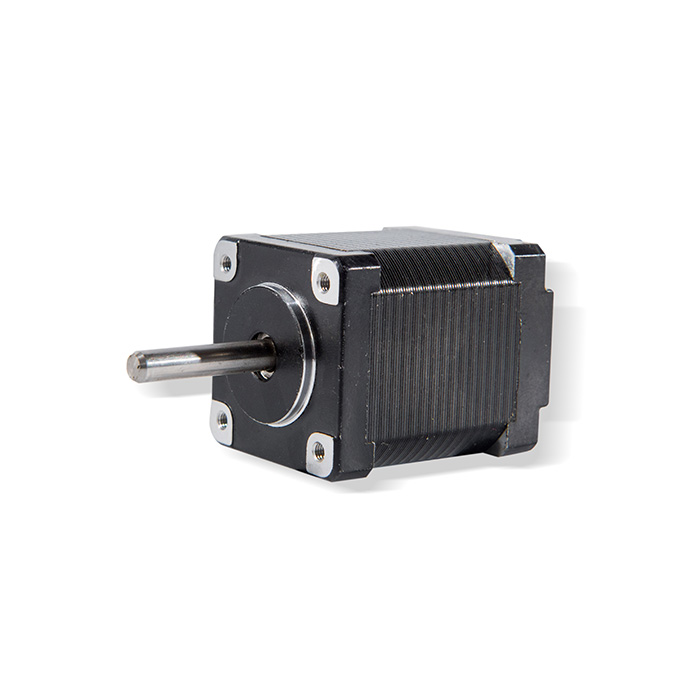

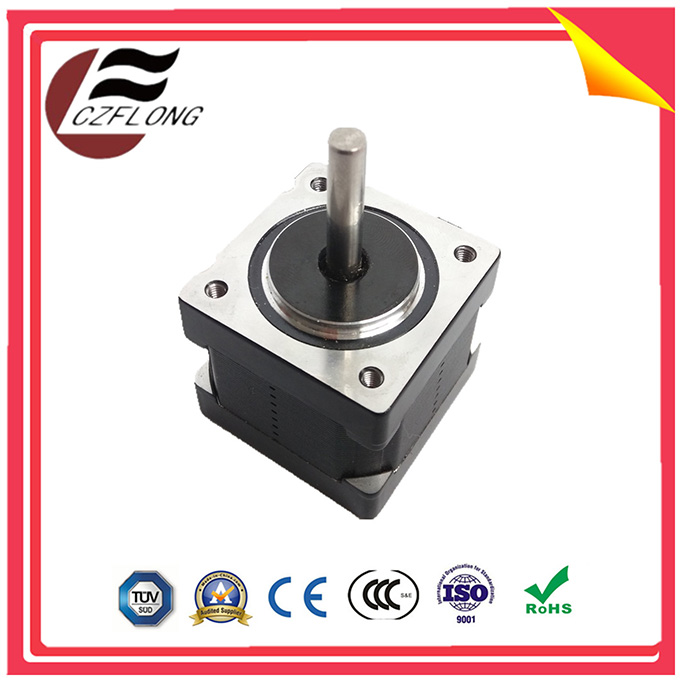

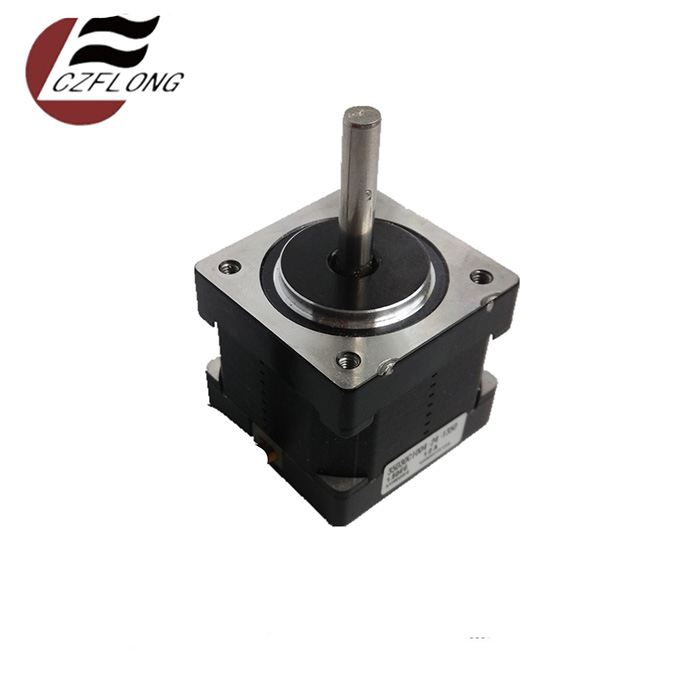

NEMA14 (35mm) Stepper motor
CZFL offers full range stepper products including stepper drives, integrated stepper motors (motor + drive), and 2 ,3,5 phase hybrid stepper motors. Our stepper products are well known for high performance, reliable quality, and effective cost saving.
    • NEMA14 (35mm) Stepper motor
    • NEMA14 (35mm) Stepper motor
    • NEMA14 (35mm) Stepper motor


Series Model

Step Agel

Motor Length(mm)

Holding Torque(Kg.cm)

Lead Wire

Rated Current (A)

Phase Resistance

Phase Inductance (MH)

Rotor Inertia(g.cm^2)

Detent Torque (g.cm)

Motor Weigt (kg)

35BYG450A

1.8

20

0.43

6

0.4

25

7

8

60

0.1

35BYG450A-01

1.8

20

0.43

5

0.4

25

7

8

60

0.1

35BYG250B-01

1.8

25

0.7

4

0.28

26

27

9.5

60

0.13

35BYG450B

1.8

25

0.46

5

0.2

22

8

9.5

60

0.13

35BYG450C

1.8

28

0.5

6

0.4

28

10

11

80

0.14

35BYG450C-02

1.8

28

0.6

6

0.2

39

16.2

11

80

0.14

35BYG450D

1.8

34

1

6

0.4

21

10.5

14

95

0.17

35BYG450F

1.8

45

1.7

6

0.8

4.2

4.2

19

130

0.23
