Hybrid stepper motor

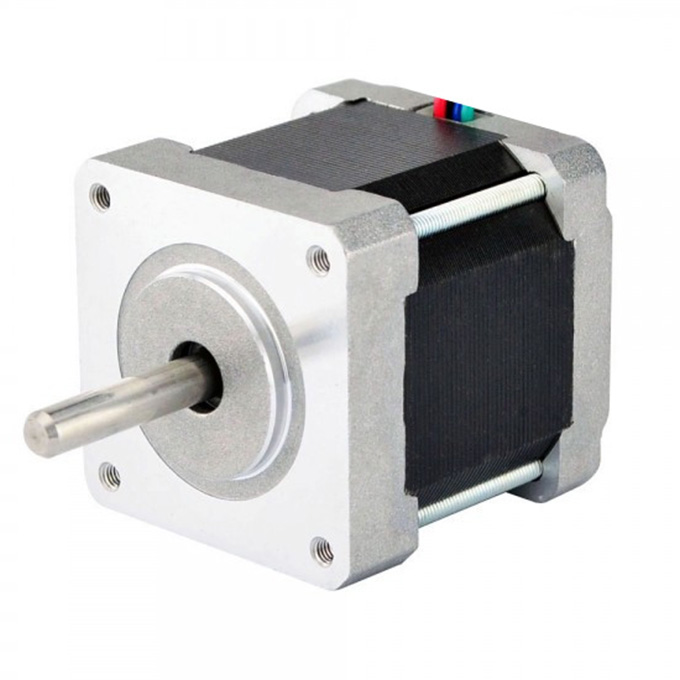

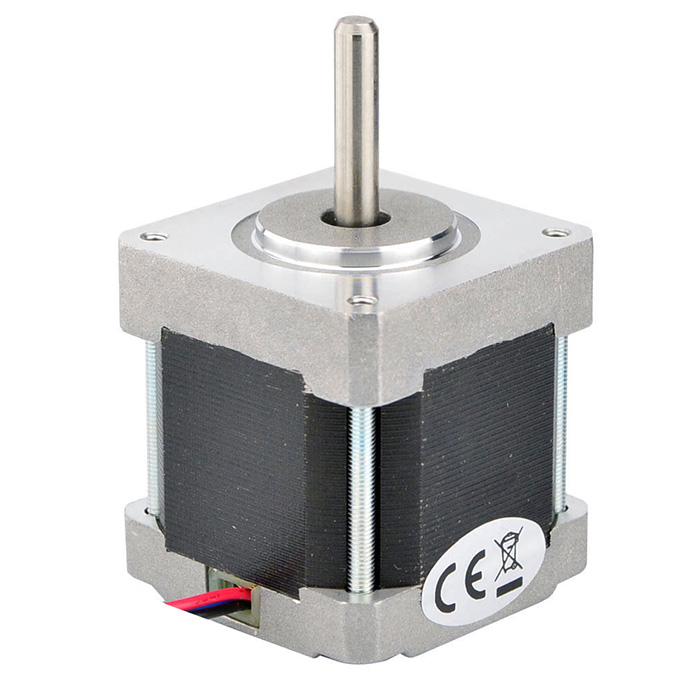

NEMA16 (39mm) Stepper motor
CZFL offers full range stepper products including stepper drives, integrated stepper motors (motor + drive), and 2 ,3,5 phase hybrid stepper motors. Our stepper products are well known for high performance, reliable quality, and effective cost saving.
    • NEMA16 (39mm) Stepper motor
    • NEMA16 (39mm) Stepper motor


Series Model

Step Agel

Motor Length(mm)

Holding Torque(Kg.cm)

Lead Wire

Rated Current (A)

Phase Resistance

Phase Inductance (MH)

Rotor Inertia(g.cm^2)

Detent Torque (g.cm)

Motor Weigt (kg)

39BYG225A

3.6

28

1

4

0.17

130

108

16

80

0.15

39BYG225A-01

3.6

28

1.1

4

0.3

31

27

16

80

0.15

39BYG250A

1.8

20

0.65

4

0.4

6.6

7.5

11

50

0.12

39BYG250B-01

1.8

26

0.9

4

0.4

12.9

10.6

15

80

0.15

39BYG250B-03

1.8

26

1

4

0.75

7.1

5.84

15

80

0.15

39BYG250C

1.8

34

1.8

4

0.6

11.2

14.2

20

120

0.18

39BYG450C

1.8

34

1.3

6

0.3

40

20

20

120

0.18

39BYG450C-04

1.8

34

1.7

6

1

4.05

2.44

20

120

0.18

39BYG450D

1.8

38

2

6

0.8

7.5

6

24

180

0.2

39BYG450E

1.8

44

2.1

6

0.5

20.8

22.2

40

250

0.25
