Hybrid stepper motor

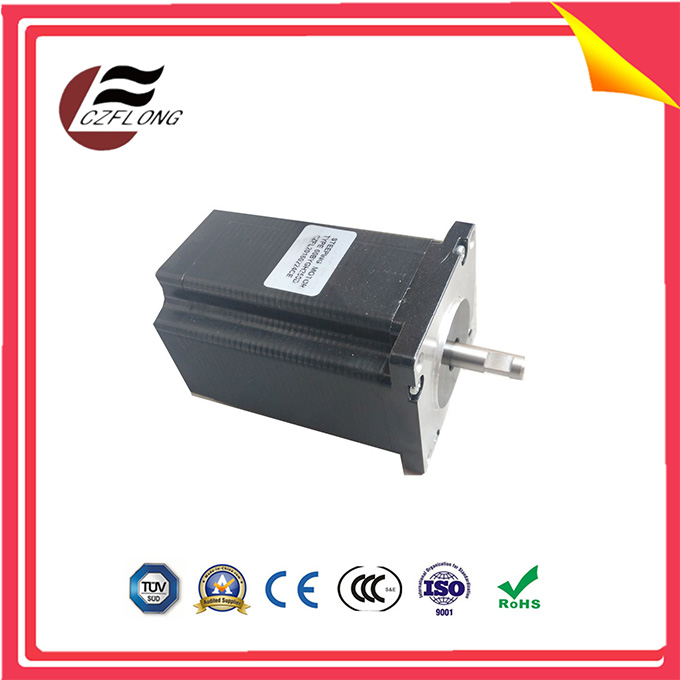

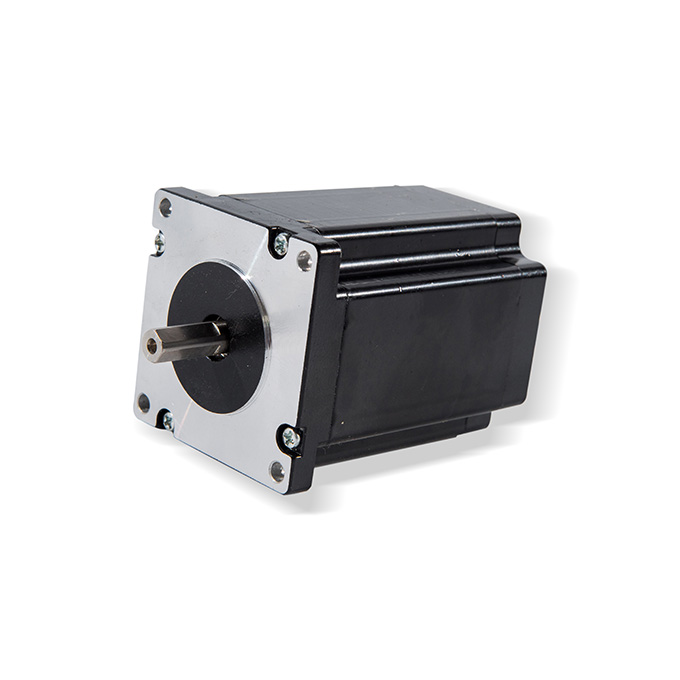

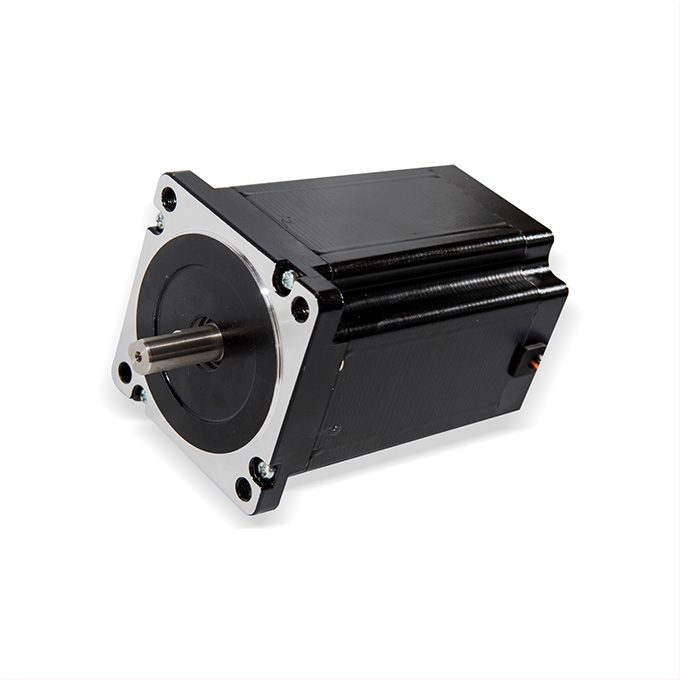

NEMA24(60mm) Stepper motor
CZFL offers full range stepper products including stepper drives, integrated stepper motors (motor + drive), and 2 ,3,5 phase hybrid stepper motors. Our stepper products are well known for high performance, reliable quality, and effective cost saving.
    • NEMA24(60mm) Stepper motor
    • NEMA24(60mm) Stepper motor


Series Model

Step Angel(°)

Motor Length(mm)

Holding Torque(Kg.cm)

Lead Wire(No)

Rated Current (A)

Phase Resistance(Ω)

Phase Inductance (mH)

Rotor Inertia(g.cm^2)

Detent Torque (g.cm)

Motor Weight (kg)

60BYGH250BA

1.8

56.5

15

4

3

1.4

3.1

300

1

0.77

60BYGH450B

1.8

56.5

12

6

3

0.92

1.42

300

1

0.77

60BYGH450B-01

1.8

56.5

12

6

1.5

3.3

4.9

300

1

0.77

60BYGH450C

1.8

67.5

17

6

2

2.3

4

570

1.2

1.2

60BYGH250C1

1.8

77.5

27.5

4

4

1.1

3.33

700

1.25

1.34

60BYGH250D

1.8

88.5

24

4

3

1.1

2.8

840

1.4

1.47

60BYGH450D

1.8

88.5

24

6

2.6

2.5

5.7

840

1.4

1.47

60BYGH250E

1.8

100.5

29

4

3

1.5

6.5

1000

1.64

1.69

60BYGH450E

1.8

100.5

23

6

2.1

2.2

4.8

1000

1.64

1.69
